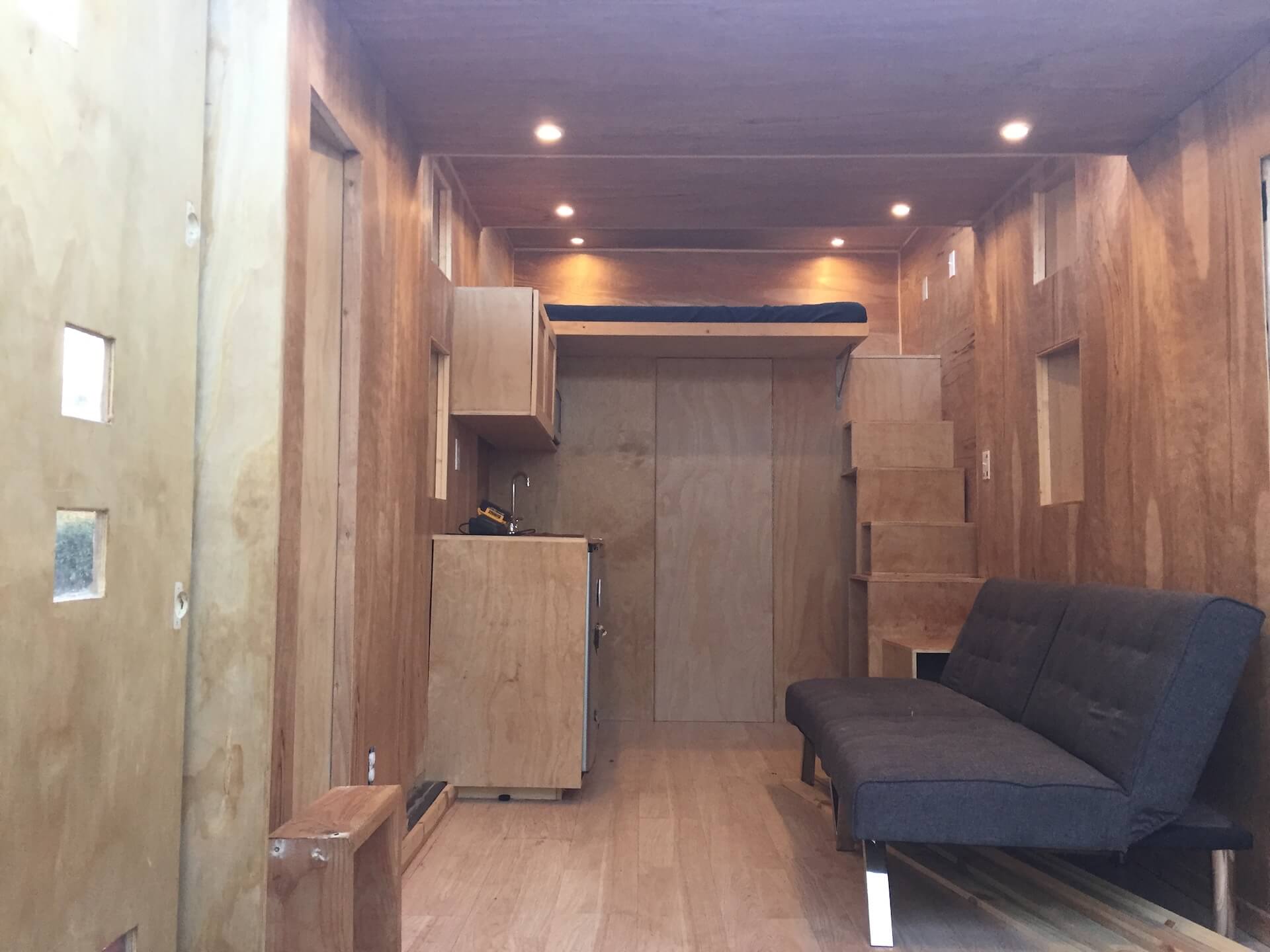

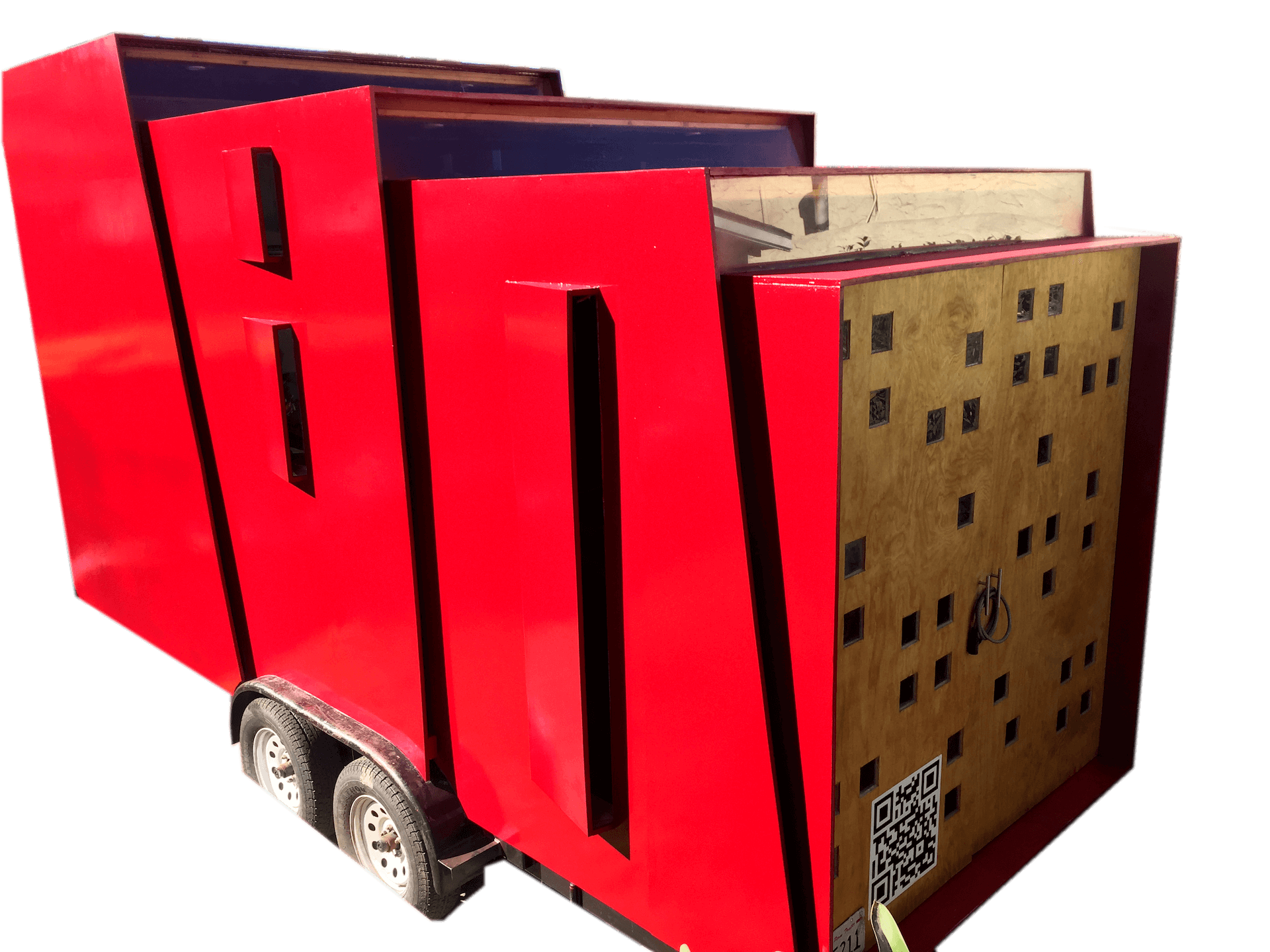

This is a 20-foot tiny home trailer that is a perfect getaway home on wheels. It features a set of custom built french doors which open up to a naturally lit space that has everything you need from a home like this: counter space, room for storage, a mini-fridge and microwave, and a full size bed right next to a wet room. The unit also features a Mirage A/C unit, a 3-tank water system with a dual flush toilet, and wall insulation rated at R-13.5, with the ceiling and floor at R-20. It sits on a diamond plate trailer and the frame for the unit is made from 2” steel square bars for optimal studiness. Both stable and sleek, this unit has a refined modern look with PVC panels on the outside accompanied by LED light strips that will be placed in the recesses of the exterior and interior to elevate the Evolution unit even further. Check out a virtual tour of the unit at this URL: https://youtu.be/i5un4jpNZJI
Trailer:
2021 Big Tex 60EC-16 Tandem Axle Car Hauler
Standard Features:
Dimmensions
Bed Width: 83"
Overall Length: 20'
Weight Rating
GVWR : 6,000lbs
Empty Weight : 1,710lbs
Axle
(2) 3,500lbs EZ Lube w/ (1) Elec. Brake
Coupler
2" A-Frame
Jacks
2,000lb Top Wind
Tires & Wheels
ST205/75D-15 Load Range C Tires
15" x 5"; Silver Mod, 5 on 5 Bolt Pattern
Tonge
4" Channel
Frame
5" x 3" x 1/4" Angle (5/16" on 18)
Fenders
9" x 72" Rolled Formed w/Back (Bolted On)
Hitch Type & Elec. Plug
7-Way RV
Bumper Pull Hitch
Suspension
Multi-Leaf Spring w/ Equalizer
Floor
2" Treated Pine or Douglas Fir*
Safety Chain
1/4" Grd. 70 w/ Safety Latch Hook (2 each)
Crossmembers
3" x 2" x 3/16" Angle
*Or similar.
Structure Generals:
Frame built with metal square bars 2x2 inches and 1⁄2 traded plywood and Exterior house wrap (Tyvek)
1⁄2 inch PVC panels for exterior finish with automotive grade paint
Wood finish panels for interior walls
Rigid insulation for walls rated at R-13.5 and ceiling and floor at R-20
Fixed windows build with 1/2 inch thick plexiglass
Custom built French style exterior door 7 feet wide by 89 inches high
